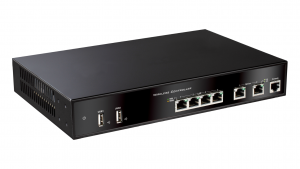

Interactive Wireless Access Point Controller

Thin AP Controller

Hardware Features

  • Central configure up to 128 EAP series Aps
  • Management from Web browser anywhere
  • 1 x USB port for firmware upgrade and configure file backup/restore
  • 4 x 10/100/1000Mbps Auto-negotiation Gigabit Ethernet Port

Software Features

  • IP setting
  • Wireless output power setting
  • Channel configuration
  • Security encryption setting
  • DTLS (Datagram Transport Layer Security)
  • VLAN setting
  • Group configuration
  • Batch configuration
  • Guest SSID
  • SSID/Client Isolation
  • Bandwidth limitation
  • Dynamic RF management
  • MAP View
  • Time Sync
  • Client limitation
  • Load Balance
  • 802.11r Fast Roaming
  • CAPWAP (Control and Provisioning of Wireless Access Points)
  • Static RF Management
  • Multiple VAP
  • Auto WLAN healing
  • Hole detection and coverage
  • Captive Portal
  • Local Bridge
  • Rouge AP detection
  • Automatic Guest Password

Specifications

StandardsIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Interface4 x 1000BASE-T Gigabit Ethernet port
1 x RJ45 Console Port
1 x USB port
1 x Reset button
Diagnostic LEDsPower and System status x 1
LAN (Link/ACT) x 1
Power Source12VDC / 1A external power adapter
Consumption12 Watts (Maximum)
TemperatureOperating Temperature 0~40 degree C
Storage Temperature: -10~70 degree C
Humidity10% ~ 95% RH, no condensation
CertificationsFCC certificate for USA
CE certificate for Europe
Tele certification for Japan (TBD)
LVD 60950
Dimensions (D x W x H)280 mm x180mmx43mm
