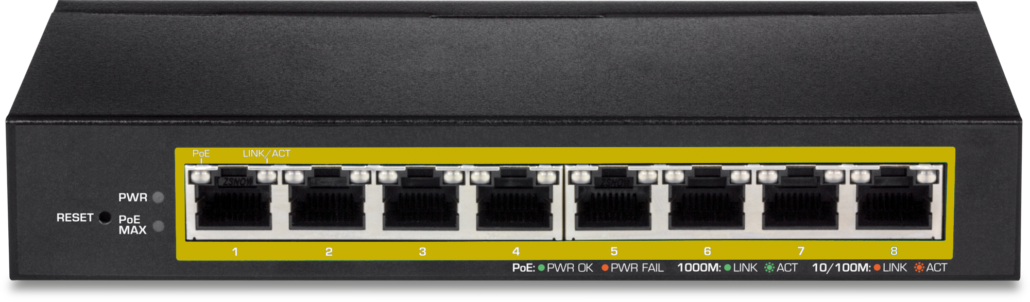

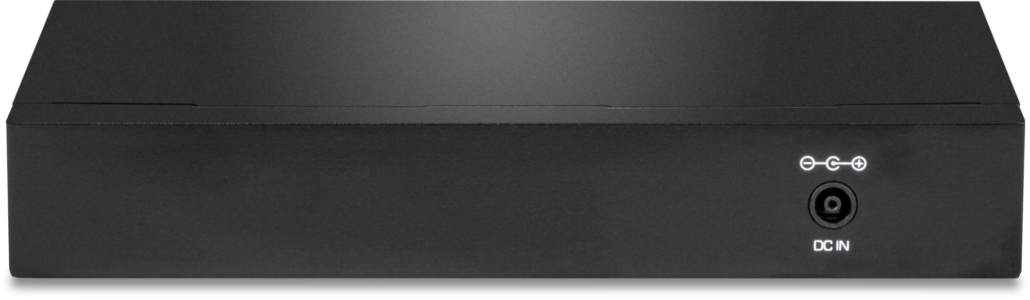

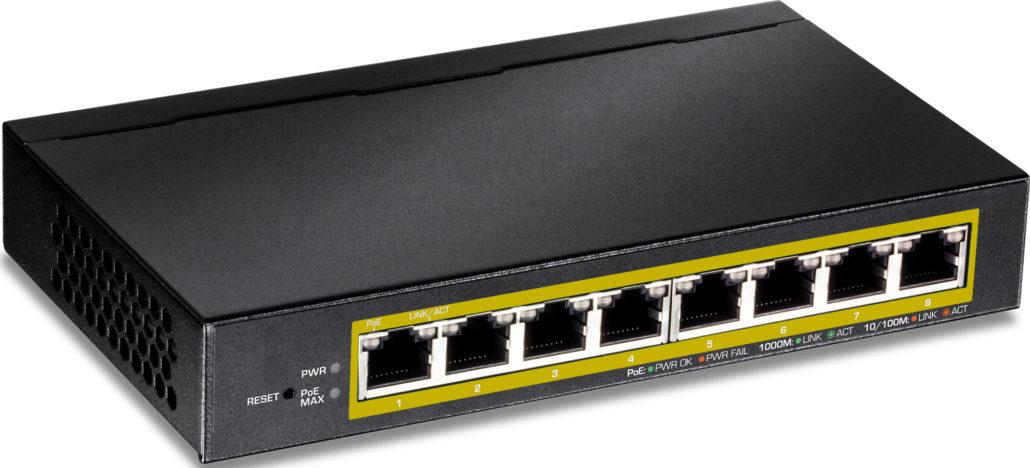

GP208TS-64
8-Port Easy Managed Gigabit Ethernet Slim 64W PoE Switch
-
8 x Gigabit Ethernet UTP ports
-
Backward compatible with 10/100Mbps devices
-
Auto MDI/MDIX for each port
-
16Gbps switching capacity
-
Supports 4K absolute MAC addresses
-
Supports 192K bytes packet buffer
-
Maximum 30W power per PoE ports
-
Maximum 64W PoE power for all PoE ports
-
Easy-to-use WEB based management GUI
-
Easy configuration for QoS, VLAN, Link Aggregation….etc
-
Auto MDI/MDIX for each port
-
Back pressure flow control for half-duplex
-
IEEE802.3x Flow Control supports for Full Duplex
-
Extensive front-panel diagnostic LEDs
-
Supports 9KB Jumbo Frame
-
Store-and-Forward switching method
-
Non-blocking switching architecture for maximum throughput at wire speed
| Hardware Specifications | |
| Interfaces | 1000BASE-T x 8 |
| Performance | Switching Capacity: 16 Gbps MAC Address Table Size: 4K Packet Buffer Memory: 192KB Jumbo Frame Size: 9KB Forwarding Rate (64-byte): 1.488 Mpps Auto MDI/MDI-X: Yes |
| PoE Specifications | 802.3af PoE Ports: Port 1~Port 8 802.3at PoE Ports: Port 1~Port 8 PoE Maximum Power Per Port: 30W Total PoE Power Budget: 64W |
| LED | Per Device: Power, PoE MAX Per Port: Link/Activity, PoE Power |
| Energy Efficiency | Green Ethernet (EEE, 802.3az): Yes FAN/Fanless: Fanless |
| Physical Specifications | Enclosure Form Factor: Slim size Material: Metal Dimensions (W x D x H mm): 171 x 97.8 x 28.6 Weight: 423 g |
| Environmental Specifications | Operating Temperature: 0° – 40° C Operating Humidity (non-condensing): 90% Max. |
| EMC/Safety | EMC Certifications: FCC/CE Safety Certifications: LVD |
| Power | Power In: External 54VDC/1.67A AC Adapter Maximum Power Consumption: 5.5 W (No PoE) |
| IEEE Network Protocols | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3az Energy Efficiency Ethernet IEEE 802.3af PoE PSE IEEE 802.3at PoE PSE IEEE 802.1d STP IEEE 802.1w RSTP IEEE 802.1p Class of Service IEEE 802.1Q Tagged VLAN |
| Software Specifications | |
| Management | HTTP Web Based GUI / SNMP v1, v2c / Cable Diagnostic Test / Backup/Restore Configuration / Upload Firmware |
| Spanning Tree | IEEE 802.1d STP / IEEE 802.1w RSTP |
| Link Aggregation | Static Link Aggregation: 2 Groups |
| Quality of Service | Port-based QoS / 802.1p Class of Service / Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps) / Queue Scheduling (SP+WFQ) |
| VLAN | Port-based VLAN / 802.1Q Tagged VLAN / VLAN Groups(Up to 32 Groups) & ID Range(1-4094) / Private VLAN / Asymmetric VLAN / Voice VLAN (5 user defined OUIs) |
| Multicast | IGMP Snooping (v1/2/3) / Block unknown multicast source / Up to 32 multicast groups |
| Port Mirror | One to One / Many to One |
| Storm Control | Broadcast (Min. Limit: 8Kbps) / Multicast (Min. Limit: 8Kbps) / Loopback Detection |
