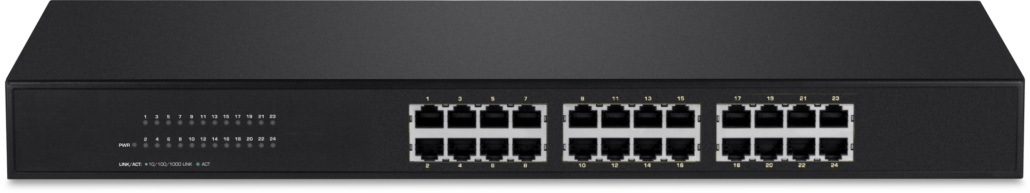

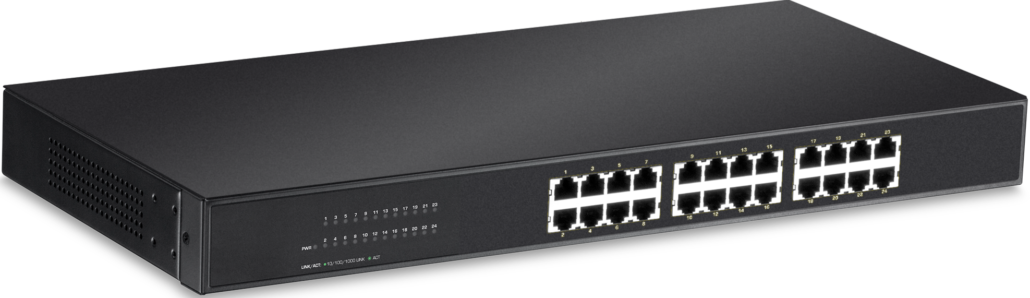

GS124TR

24-Port Unmanaged Gigabit Ethernet Rack-Mount Switch

Highlight

  • 24 x Gigabit Ethernet UTP ports

  • Backward compatible with 10/100Mbps devices

  • Auto MDI/MDIX for each port

  • 48Gbps switching capacity

  • Supports 8K absolute MAC addresses

  • Supports 512K bytes packet buffer

  • Backpressure flow control for half-duplex

  • IEEE802.3x Flow Control supports for Full Duplex

  • Extensive front-panel diagnostic LEDs

  • Store-and-Forward switching method

  • Supports jumbo frame up to 10K bytes

  • 19″ Rack-Mount size with Fanless design

GS124TR

Product specifications

Interfaces1000BASE-T x 24
PerformanceSwitching Capacity: 48 Gbps
MAC Address Table Size: 8K
Packet Buffer Memory: 512KB
Jumbo Frame Size: 10KB
Forwarding Rate (64-byte): 1.488 Mpps
Auto MDI/MDI-X: Yes
LEDPer Device: Power
Per Port: Link/Activity
Energy EfficiencyGreen Ethernet (EEE, 802.3az): Yes
FAN/Fanless: Fanless
Physical SpecificationsEnclosure Form Factor: Rack-Mount size
Material: Metal
Dimensions (W x D x H mm): 440 x 210 x 44
Weight: 2.3 kg
Environmental SpecificationsOperating Temperature: 0° – 40° C
Operating Humidity (non-condensing): 90% Max.
EMC/SafetyEMC Certifications: FCC/CE
Safety Certifications: UL/CB
PowerPower In: Internal Switching Power 100~240 VAC
Maximum Power Consumption: 13 W
IEEE Network ProtocolsIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficiency Ethernet
