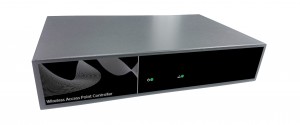

Standalone Wireless Access Point Controller

FAT AP Controller

Hardware Features

  • Central configure up to 50 EAP series APs
  • Easy management from web browser anywhere
  • 1 x USB port for firmware upgrade and configure file backup/restore
  • 5 x 10/100/1000Mbps Auto-negotiation Gigabit Ethernet Port

Software Features

  • IP setting
  • Wireless output power setting
  • Multiple SSID setting
  • Channel configuration
  • Security encryption setting
  • VLAN setting
  • Group configuration
  • Batch configuration
  • SSID/Client Isolation
  • Bandwidth limitation
  • Access control setting by MAC
  • Statistic analysis


StandardsIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Interface5 x 1000BASE-T Gigabit Ethernet port
1 x USB port
1 x Reset button
Diagnostic LEDsPower and System status x 1
LAN ( Link/ACT) x 1
Power Source12VDC / 1A external power adapter
Consumption12 Watts (Maximum)
TemperatureOperating Temperature 0~40 degree C
Storage Temperature: -10~70 degree C
Humidity10% ~ 95% RH, no condensation
CertificationsFCC certificate for USA
CE certificate for Europe
Tele certification for Japan (TBD)
LVD 60950
Dimensions (D x W x H)215 mm x130mmx44mm
