FP108TS-30

8-Port Unmanaged Fast Ethernet Slim 30W PoE Switch w/4 PoE Ports

Highlight

  • 8 x Fast Ethernet UTP ports

  • 4 x 802.3af  PoE ports (Port 1~Port 4)

  • Backward compatible with 10Mbps devices

  • Auto MDI/MDIX for each port

  • 1.6Gbps switching capacity

  • Supports 2K absolute MAC addresses

  • Supports 96K bytes packet buffer

  • Maximum 15.4W power per PoE ports

  • Maximum 30W PoE power for all PoE ports

  • Backpressure flow control for half-duplex

  • IEEE802.3x Flow Control supports for Full Duplex

  • Extensive front-panel diagnostic LEDs

  • Store-and-Forward switching method

  • Slim size with Fanless design

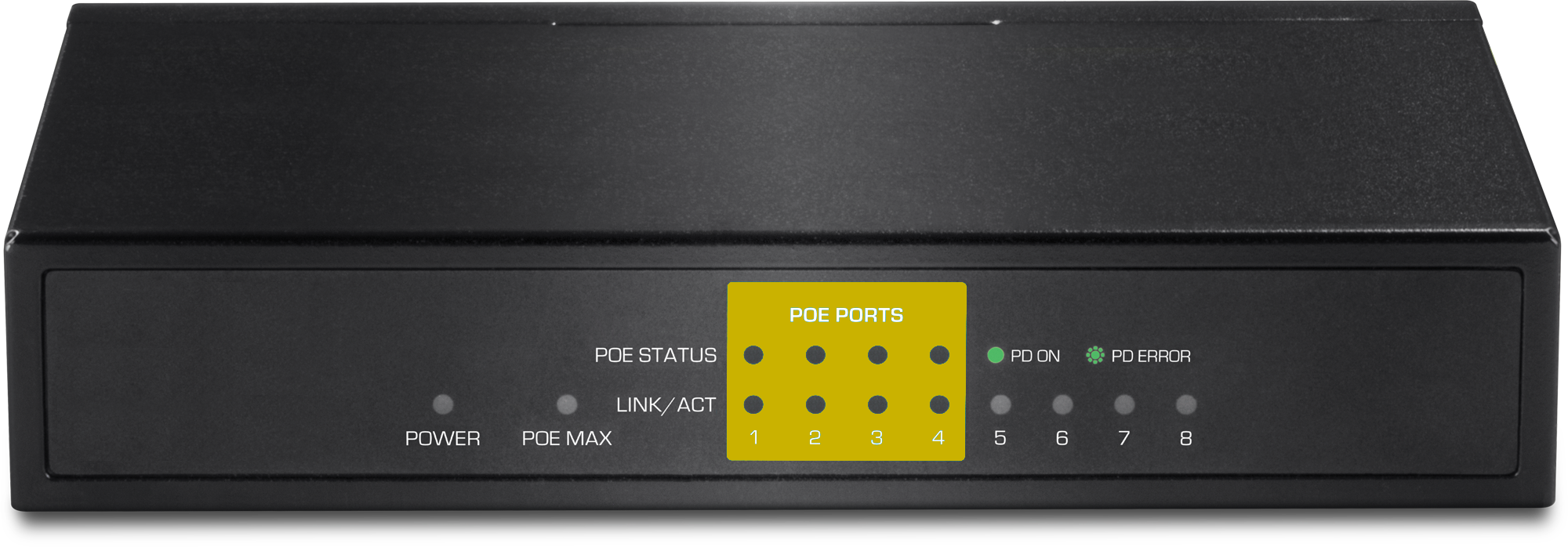

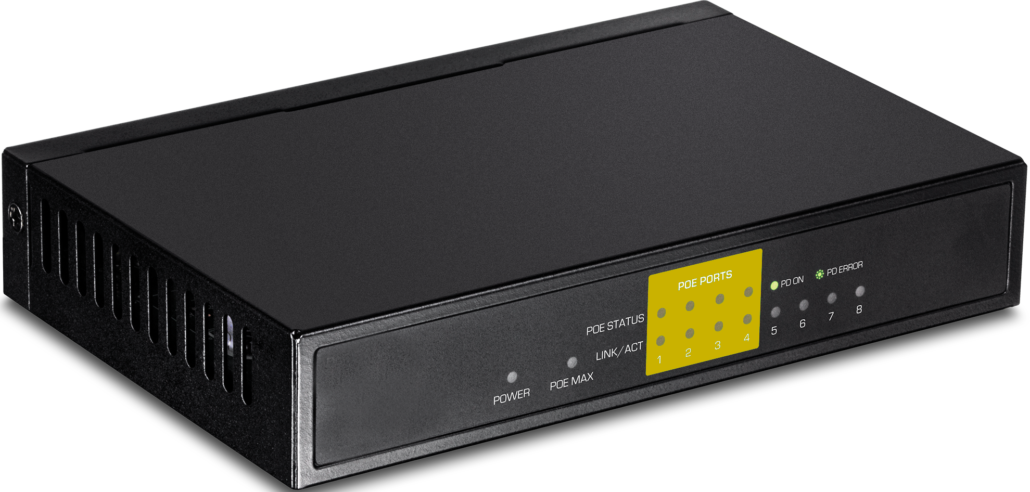

FP108TS-30

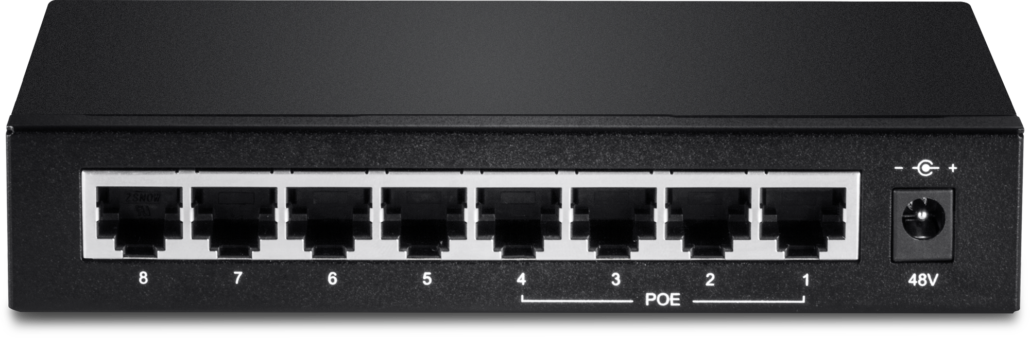

FP108TS 30 Back

Product specifications

Interfaces100BASE-TX x 8
PerformanceSwitching Capacity: 1.6 Gbps
MAC Address Table Size: 2K
Packet Buffer Memory: 96KB
Forwarding Rate (64-byte): 0.1488 Mpps
Auto MDI/MDI-X: Yes
PoE Specifications802.3af PoE Ports: Port 1~Port 4
PoE Maximum Power Per Port: 15.4W
Total PoE Power Budget: 30W
LEDPer Device: Power, PoE MAX
Per Port: Link/Activity, PoE Power (Port 1~Port 4)
Energy EfficiencyGreen Ethernet (EEE, 802.3az): Yes
FAN/Fanless: Fanless
Physical SpecificationsEnclosure Form Factor: Slim size
Material: Metal
Dimensions (W x D x H mm): 150 x 96 x 28
Weight: 370 g
Environmental SpecificationsOperating Temperature: 0° – 40° C
Operating Humidity (non-condensing): 90% Max.
EMC/SafetyEMC Certifications: FCC/CE
Safety Certifications: LVD
PowerPower In: External 48VDC/0.8A AC Adapter
Maximum Power Consumption: 2.1 W (No PoE)
IEEE Network ProtocolsIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficiency Ethernet
IEEE 802.3af PoE PSE
