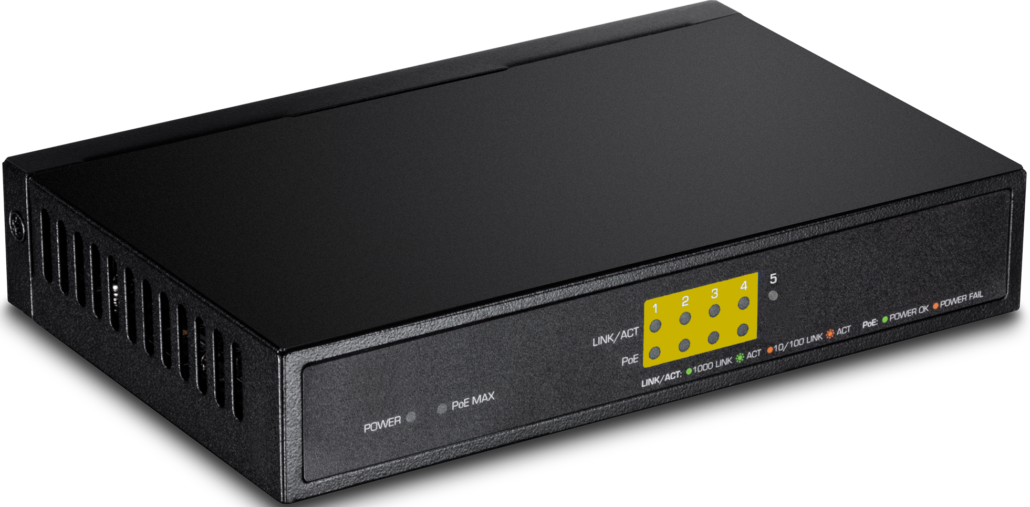

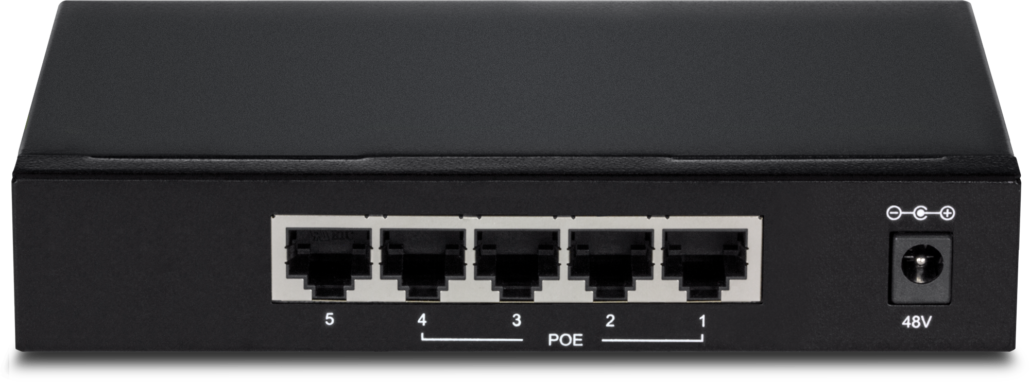

GP105TS-31

5-Port Unmanaged Gigabit Ethernet Slim 31W PoE Switch w/4 PoE Ports

Highlight

  • 5 x Gigabit Ethernet UTP ports

  • 4 x 802.3at  PoE ports (Port 1~Port 4)

  • Backward compatible with 10/100Mbps devices

  • Auto MDI/MDIX for each port

  • 10Gbps switching capacity

  • Supports 8K absolute MAC addresses

  • Supports 128K bytes packet buffer

  • Maximum 30W power per PoE ports

  • Maximum 31W PoE power for all PoE ports

  • Backpressure flow control for half-duplex

  • IEEE802.3x Flow Control supports for Full Duplex

  • Extensive front-panel diagnostic LEDs

  • Store-and-Forward switching method

  • Supports jumbo frame up to 9K bytes

  • Slim size with Fanless design

GP105TS-31

Product specifications

Interfaces1000BASE-T x 5
PerformanceSwitching Capacity: 10 Gbps
MAC Address Table Size: 8K
Packet Buffer Memory: 128KB
Jumbo Frame Size: 9KB
Forwarding Rate (64-byte): 1.488 Mpps
Auto MDI/MDI-X: Yes
PoE Specifications802.3af PoE Ports: Port 1~Port 4
802.3at PoE Ports: Port 1~Port 4
PoE Maximum Power Per Port: 30W
Total PoE Power Budget: 31W
LEDPer Device: Power, PoE MAX
Per Port: Link/Activity, PoE Power
Energy EfficiencyGreen Ethernet (EEE, 802.3az): Yes
FAN/Fanless: Fanless
Physical SpecificationsEnclosure Form Factor: Slim size
Material: Metal
Dimensions (W x D x H mm): 148 x 95 x 28
Weight: 366 g
Environmental SpecificationsOperating Temperature: 0° – 40° C
Operating Humidity (non-condensing): 90% Max.
EMC/SafetyEMC Certifications: FCC/CE
Safety Certifications: LVD
PowerPower In: External 48VDC/0.8A AC Adapter
Maximum Power Consumption: 3.5 W (No PoE)
IEEE Network ProtocolsIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficiency Ethernet
IEEE 802.3af PoE PSE
IEEE 802.3at PoE PSE
