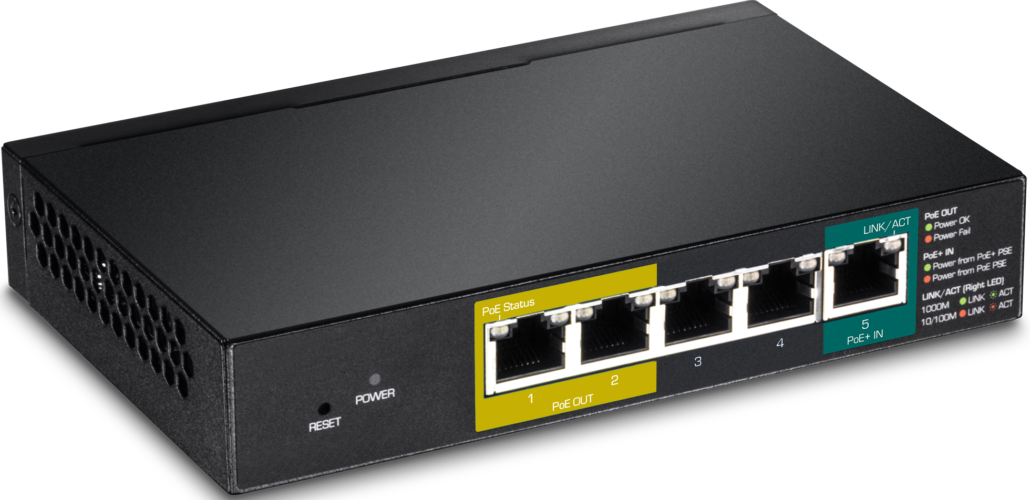

GP205TS-18

5-Port Easy Managed Gigabit Ethernet Slim 18W PoE Switch w/1 PoE PD + 2 PoE PSE Ports

Highlight

  • 5 x Gigabit Ethernet UTP ports

  • 2 x 802.3af PoE Ports (Port 1~Port  2)

  • Powered by 802.3af/802.3at PoE PD Port (Port 5)

  • Backward compatible with 10/100Mbps devices

  • Auto MDI/MDIX for each port

  • 10Gbps switching capacity

  • Supports 2K absolute MAC addresses

  • Supports 128K bytes packet buffer

  • Maximum 15.4W power per PoE ports

  • Maximum 18W PoE power for all PoE ports

  • Easy-to-use WEB based management GUI

  • Easy configuration for QoS, VLAN, Link Aggregation….etc

  • Auto MDI/MDIX for each port

  • Back pressure flow control for half-duplex

  • IEEE802.3x Flow Control supports for Full Duplex

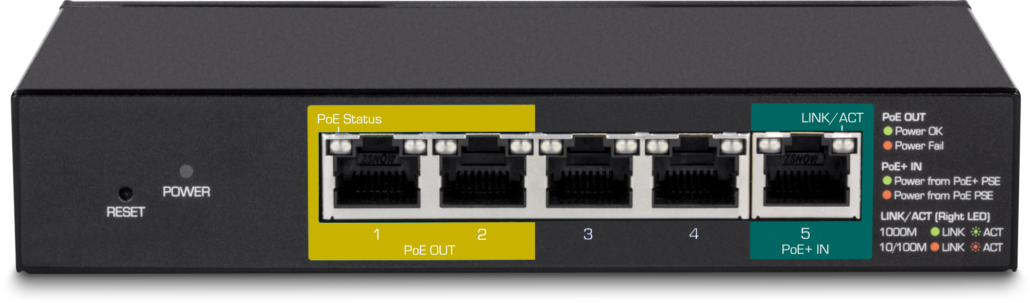

  • Extensive front-panel diagnostic LEDs

  • Supports 9KB Jumbo Frame

  • Store-and-Forward switching method

  • Non-blocking switching architecture for maximum throughput at wire speed

GP205TS-18

Product specifications

Hardware Specifications
Interfaces1000BASE-T x 5
PerformanceSwitching Capacity: 10 Gbps
MAC Address Table Size: 2K
Packet Buffer Memory: 128KB
Jumbo Frame Size: 9KB
Forwarding Rate (64-byte): 1.488 Mpps
Auto MDI/MDI-X: Yes
PoE Specifications802.3af PoE PSE Ports: Port 1~Port 2
802.3af/802.3at PoE PD Port: Port 5 (Power In)
PoE Maximum Power Per Port: 15.4W
Total PoE Power Budget: 18W
LEDPer Device: Power, PoE MAX
Per Port: Link/Activity, PoE Power
Energy EfficiencyGreen Ethernet (EEE, 802.3az): Yes
FAN/Fanless: Fanless
Physical SpecificationsEnclosure Form Factor: Slim size
Material: Metal
Dimensions (W x D x H mm): 150 x 97 x 28.6
Weight: 370 g
Environmental SpecificationsOperating Temperature: 0° – 40° C
Operating Humidity (non-condensing): 90% Max.
EMC/SafetyEMC Certifications: FCC/CE
Safety Certifications: LVD
PowerPower In: 802.3af PoE PD/802.3at PoE PD (Port 5)
Maximum Power Consumption: 2.4 W (No PoE)
IEEE Network ProtocolsIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficiency Ethernet
IEEE 802.3af PoE PSE
IEEE 802.3af/802.3at PoE PD
IEEE 802.1d STP
IEEE 802.1w RSTP
IEEE 802.1p Class of Service
IEEE 802.1Q Tagged VLAN
Software Specifications
ManagementHTTP Web Based GUI / SNMP v1, v2c / Cable Diagnostic Test / Backup/Restore Configuration / Upload Firmware
Spanning TreeIEEE 802.1d STP / IEEE 802.1w RSTP
Link AggregationStatic Link Aggregation: 1 Group
Quality of ServicePort-based QoS / 802.1p Class of Service / Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps) / Queue Scheduling (SP+WFQ)
VLANPort-based VLAN / 802.1Q Tagged VLAN / VLAN Groups(Up to 32 Groups) & ID Range(1-4094) / Private VLAN / Asymmetric VLAN / Voice VLAN (5 user defined OUIs)
MulticastIGMP Snooping (v1/2/3) / Block unknown multicast source / Up to 32 multicast groups
Port MirrorOne to One / Many to One
Storm ControlBroadcast (Min. Limit: 8Kbps) / Multicast (Min. Limit: 8Kbps) / Loopback Detection
