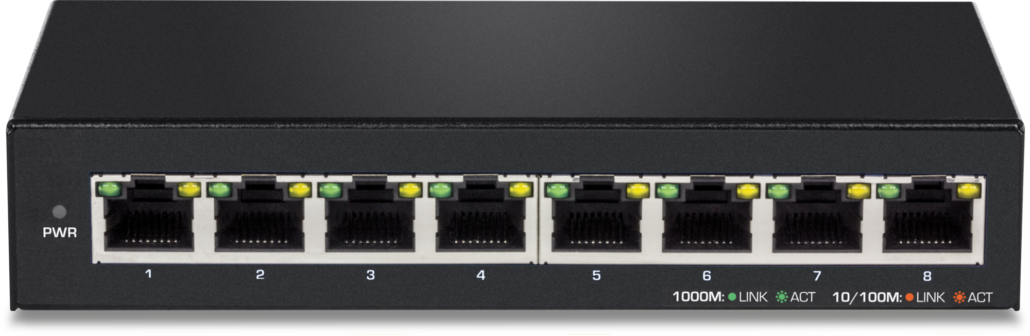

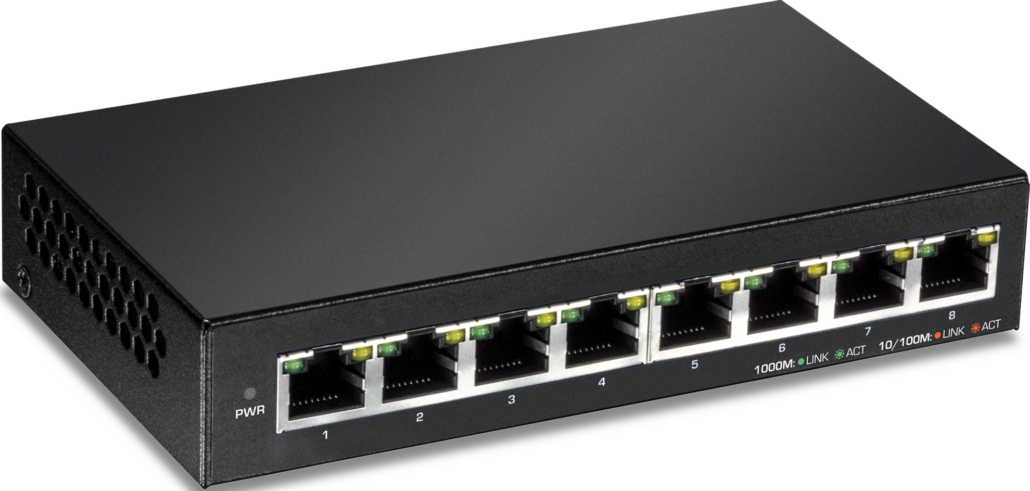

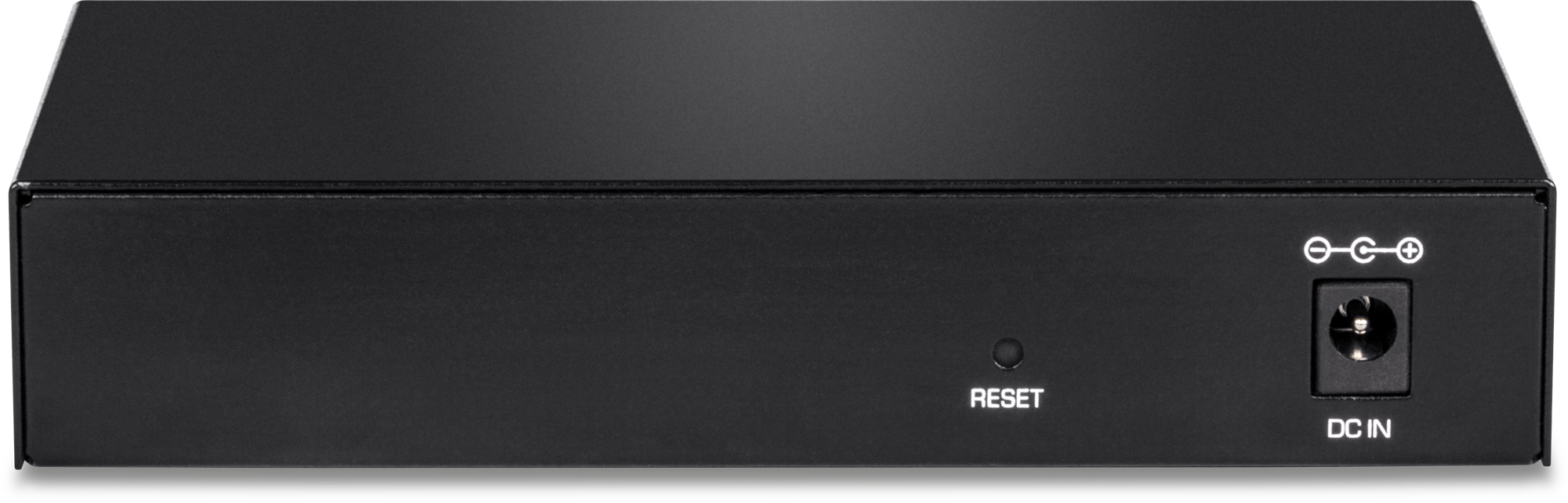

GS208TS
8-Port Easy Managed Gigabit Ethernet Slim Switch
-
8 x Gigabit Ethernet UTP ports
-
Backward compatible with 10/100Mbps devices
-
Auto MDI/MDIX for each port
-
16Gbps switching capacity
-
Supports 4K absolute MAC addresses
-
Supports 192K bytes packet buffer
-
Easy-to-use WEB based management GUI
-
Easy configuration for QoS, VLAN, Link Aggregation….etc
-
Auto MDI/MDIX for each port
-
Back pressure flow control for half-duplex
-
IEEE802.3x Flow Control supports for Full Duplex
-
Extensive front-panel diagnostic LEDs
-
Supports 9KB Jumbo Frame
-
Store-and-Forward switching method
-
Non-blocking switching architecture for maximum throughput at wire speed
| Hardware Specifications | |
| Interfaces | 1000BASE-T x 8 |
| Performance | Switching Capacity: 16 Gbps MAC Address Table Size: 4K Packet Buffer Memory: 192KB Jumbo Frame Size: 9KB Forwarding Rate (64-byte): 1.488 Mpps Auto MDI/MDI-X: Yes |
| LED | Per Device: Power Per Port: Link/Activity |
| Energy Efficiency | Green Ethernet (EEE, 802.3az): Yes FAN/Fanless: Fanless |
| Physical Specifications | Enclosure Form Factor: Slim size Material: Metal Dimensions (W x D x H mm): 145 x 82 x 28 Weight: 317 g |
| Environmental Specifications | Operating Temperature: 0° – 40° C Operating Humidity (non-condensing): 90% Max. |
| EMC/Safety | EMC Certifications: FCC/CE Safety Certifications: LVD |
| Power | Power In: External 5VDC/1.0A AC Adapter Maximum Power Consumption: 4.94 W |
| IEEE Network Protocols | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3x Flow Control IEEE 802.3az Energy Efficiency Ethernet IEEE 802.1d STP IEEE 802.1w RSTP IEEE 802.1p Class of Service IEEE 802.1Q Tagged VLAN |
| Software Specifications | |
| Management | HTTP Web Based GUI / SNMP v1, v2c / Cable Diagnostic Test / Backup/Restore Configuration / Upload Firmware |
| Spanning Tree | IEEE 802.1d STP / IEEE 802.1w RSTP |
| Link Aggregation | Static Link Aggregation: 2 Groups |
| Quality of Service | Port-based QoS / 802.1p Class of Service / Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps) / Queue Scheduling (SP+WFQ) |
| VLAN | Port-based VLAN / 802.1Q Tagged VLAN / VLAN Groups(Up to 32 Groups) & ID Range(1-4094) / Private VLAN / Asymmetric VLAN / Voice VLAN (5 user defined OUIs) |
| Multicast | IGMP Snooping (v1/2/3) / Block unknown multicast source / Up to 32 multicast groups |
| Port Mirror | One to One / Many to One |
| Storm Control | Broadcast (Min. Limit: 8Kbps) / Multicast (Min. Limit: 8Kbps) / Loopback Detection |
