GS105TS

5-Port Unmanaged Gigabit Ethernet Slim Switch

Highlight

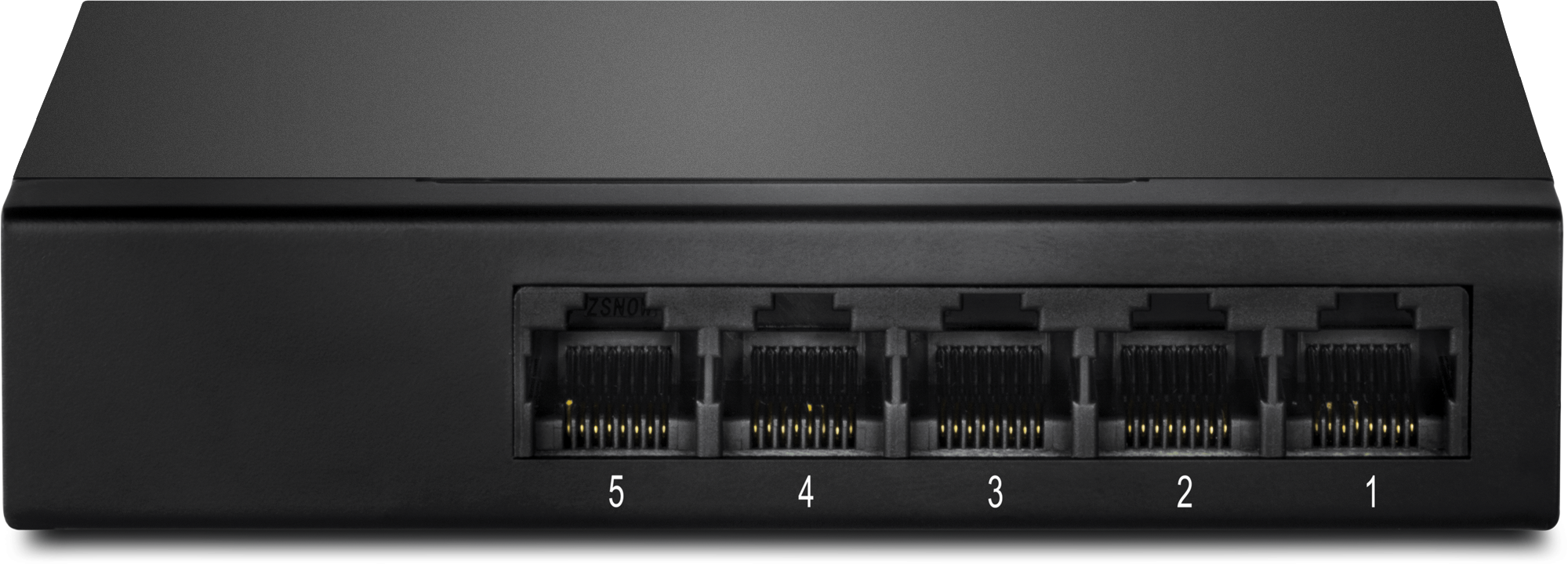

  • 5 x Gigabit Ethernet UTP ports

  • Backward compatible with 10/100Mbps devices

  • Auto MDI/MDIX for each port

  • 10Gbps switching capacity

  • Supports 2K absolute MAC addresses

  • Supports 128K bytes packet buffer

  • Backpressure flow control for half-duplex

  • IEEE802.3x Flow Control supports for Full Duplex

  • Extensive front-panel diagnostic LEDs

  • Store-and-Forward switching method

  • Supports jumbo frame up to 9K bytes

  • Slim size with Fanless design

GS105TS

Product specifications

Interfaces1000BASE-T x 5
PerformanceSwitching Capacity: 10 Gbps
MAC Address Table Size: 2K
Packet Buffer Memory: 128KB
Jumbo Frame Size: 9KB
Forwarding Rate (64-byte): 1.488 Mpps
Auto MDI/MDI-X: Yes

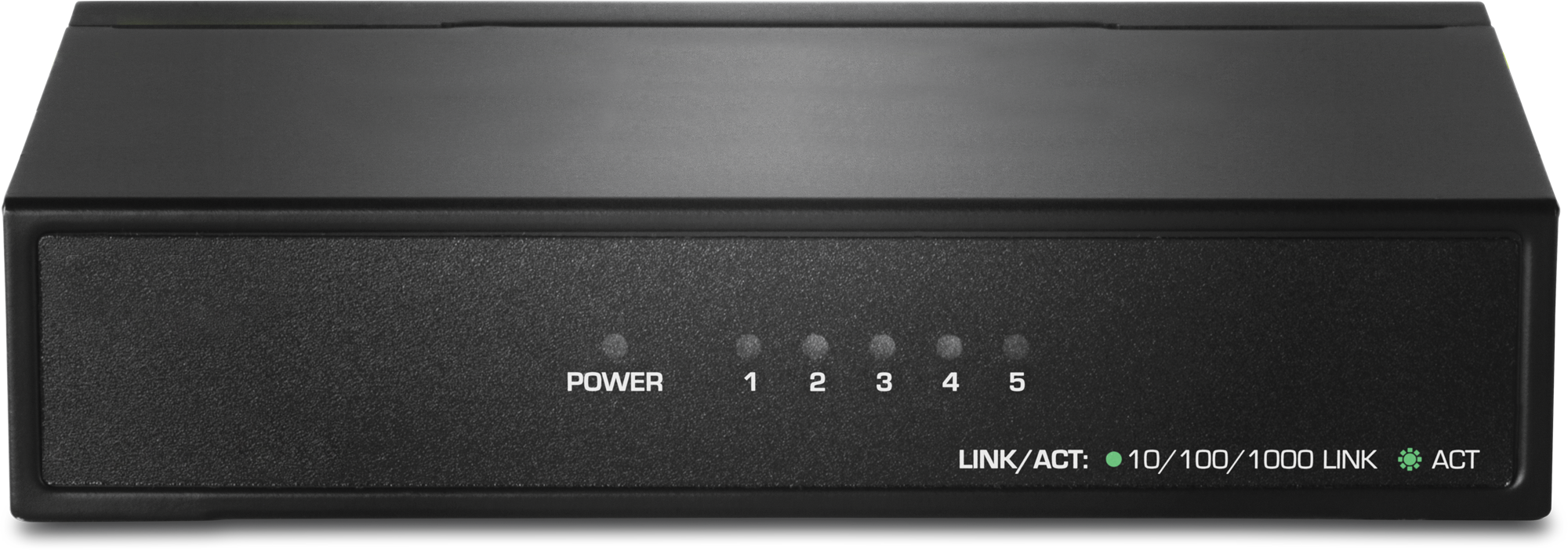

LEDPer Device: Power
Per Port: Link/Activity
Energy EfficiencyGreen Ethernet (EEE, 802.3az): Yes
FAN/Fanless: Fanless
Physical SpecificationsEnclosure Form Factor: Slim size
Material: Metal
Dimensions (W x D x H mm): 116 x 75 x 25
Weight: 192 g
Environmental SpecificationsOperating Temperature: 0° – 40° C
Operating Humidity (non-condensing): 90% Max.
EMC/SafetyEMC Certifications: FCC/CE
Safety Certifications: LVD
PowerPower In: External 5VDC/1.0A AC Adapter
Maximum Power Consumption: 2.75 W
IEEE Network ProtocolsIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficiency Ethernet
