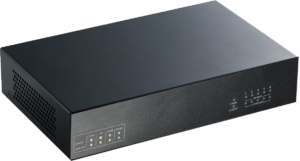

NS105TD

5-Port Unmanaged 2.5Gigabit Ethernet Desktop Switch

Highlight

  • 5 x 2.5 Gigabit Ethernet UTP ports

  • IEEE 802.3bz (2.5G) compliant

  • Backward compatible with 10/100/1000Mbps devices

  • Auto MDI/MDIX for each port

  • 25Gbps switching capacity

  • Supports 16K absolute MAC addresses

  • Supports 12Mbits packet buffer

  • Backpressure flow control for half-duplex

  • IEEE802.3x Flow Control supports for Full Duplex

  • Extensive front-panel diagnostic LEDs

  • Store-and-Forward switching method

  • Supports jumbo frame up to 12K bytes

  • Desktop size with Fanless design

NS105TD

Product specifications

Interfaces2.5GBASE-T x 5
PerformanceSwitching Capacity: 25 Gbps
MAC Address Table Size: 16K
Packet Buffer Memory: 1.5MB
Jumbo Frame Size: 12MB
Forwarding Rate (64-byte): 3.72 Mpps
Auto MDI/MDI-X: Yes
LEDPer Device: Power
Per Port: Link/Activity
Energy EfficiencyGreen Ethernet (EEE, 802.3az): Yes
FAN/Fanless: Fanless
Physical SpecificationsEnclosure Form Factor: Desktop size
Material: Metal
Dimensions (W x D x H mm): 280 x 125.8 x 44
Weight: 840 g
Environmental SpecificationsOperating Temperature: 0° – 40° C
Operating Humidity (non-condensing): 90% Max.
EMC/SafetyEMC Certifications: FCC/CE
Safety Certifications: LVD
PowerPower In: External 12VDC/1.0A AC Adapter
Maximum Power Consumption: 9.2 W
IEEE Network ProtocolsIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3bz 2.5GBASE-T Gigabit Ethernet
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficiency Ethernet
